29.11.2019 Smyth DX-70 plus

For the needs of high-quality and fast production of book blocks, we have integrated a fully automated modular bookbinding system for thread sewing into our production process, aiming to cover the segment of book production in smaller print runs.

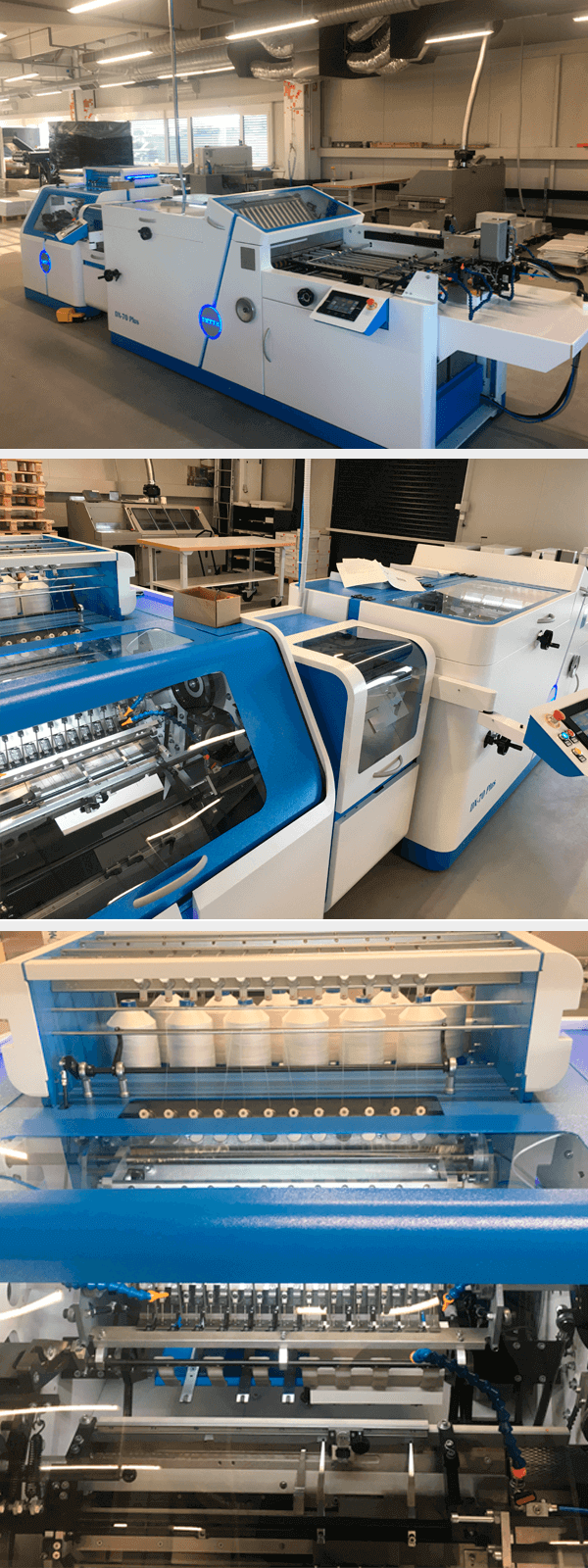

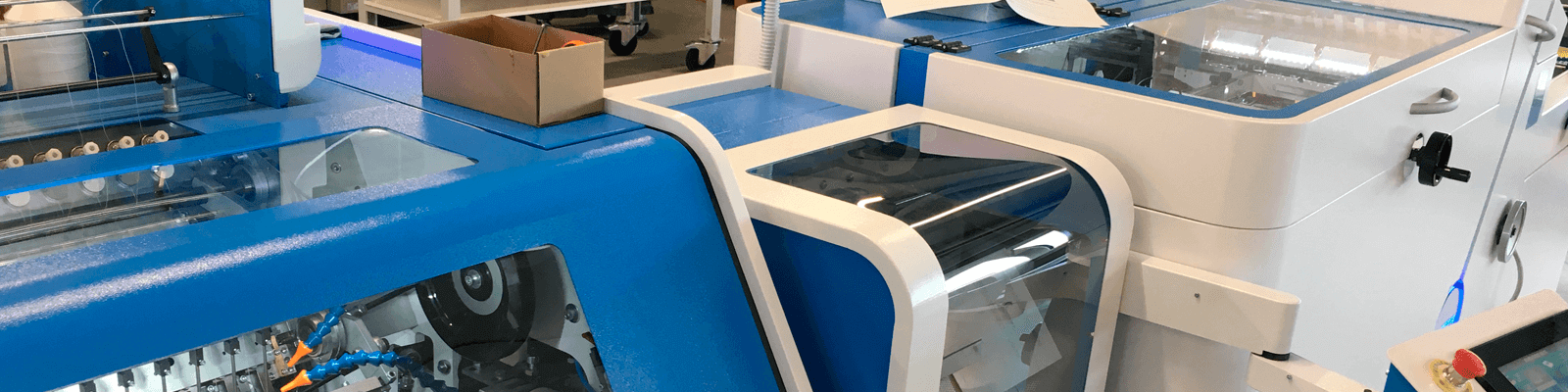

The sewing line consists of two modules, including an automatic sheet feeding system for digitally printed sheets, a cross-folding unit that folds into an 8-page signature, a pneumatic knife, and a sewing unit with a sewing head for conventional thread sewing, ensuring perfect spine piercing for both thinner and thicker folded sheets.


Technical specifications:
Sheet format:
4-page signature: max. 350x700 mm / 350x350 mm, min. 210x160 mm / 210x80 mm
8-page signature: max. 700x500 mm / 370x220 mm, min. 270x220 mm / 135x110 mm
Paper weight: from 50 g/m2 to max. 180 g/m2
Number of stitches: max. 12
Stitch length: 24 mm
